1. You have to measure the pole from the ground up to the top
2. You have to measure the pole from the ground up to the panel/s

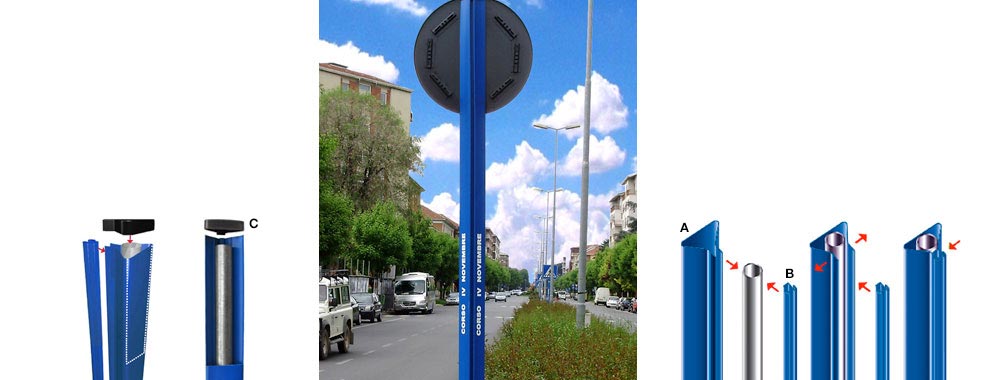

3. You have to cut T.System in the front part (see image) beginning from the base of the panel up to the top of the pole, considering that the base of the panel has to overcome the cut of 3 cm. 4. The top of T.System must be higher than the pole of 3 cm, in order to allow its fastening by means of the cap.

1. You have to take the sleeve A, extend the ends in the upper part and stick it to the pole, wrapping it completely, without disassembling the signal
2. if you want to obtain a definitive fastening, you have to apply a glue for PVC at the end of the case A, to insert the section B beginning from the upper part downwards, to press as far as you get a perfect junction of the sleeve
3. In order to get an antirotation of the structure, you have to put on the base a self-tapping screw
4. Fasten with the protection cap C.
